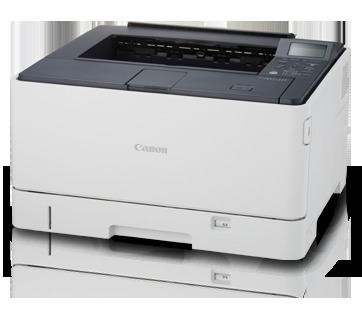

Canon ImageCLASS LBP8780x Laser Printer

Canon ImageCLASS LBP8780x Laser Printer

Product Details:

X

Product Description

Print
Printing Method Monochrome Laser Beam Printing
Fixing Method On Demand Fixing
Print Speed Mono: A4 / A3 40 / 20ppm
Duplex: A4 40ppm (20spm; sheets per minute)
Print Resolution 600 x 600dpi
Print Quality with Image Refinement 1200 x 1200dpi (equivalent)
2400 (equivalent) x 600dpi
Warm-Up Time From Power On:
29secs. or less
From Quick Start: 17secs. or less
Recovery Time (From Sleep Mode) Panel Off: 0sec.
Deep Sleep: 10secs. or less
First Print Out Time (FPOT) Approx. 9.3secs.
Print Language UFRII, PCL5e/6, PostScript 3, PDF, XPS
Standard Fonts PCL: 93 fonts
PS / PDF: 136 fonts
Auto Duplex Print Standard
Available Paper Size for Auto Duplex Print A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe
Print Margins 5mm - top, bottom, left and right
(Envelope: 10mm)
Direct Print (via USB Host 2.0) TIFF, JPEG, PDF, XPS
Paper Handling
Paper Input
Standard Cassette:
(Based on 60 - 84g/m2)
250 sheets
Multi-Purpose Tray:
(Based on 60 - 90g/m2)
100 sheets
Optional Paper Feeder PF-A1:
(Based on 60 - 74g/m2)
550 sheets (max. 3 units)
Maximum Paper Input Capacity
(Based on 60 - 74g/m2):
2,000 sheets
Paper Size Standard Cassette: A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe, foolscap, 8K, 16K,
Custom Size available*2
Multi-Purpose Tray: A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe, STMT, foolscap, 8K, 16K,
Custom Media: 76.2 - 312.0mm x 127.0 - 470.0mm; 210.0   297.0mm x 470.1  1200mm (only with UFR II printer driver)
Optional Paper Feeder PF-A1: A3, B4, A4, A4R, B5, A5^, Ledger, LTR, LTR-R, Legal*1, Exe, STMT, foolscap, 8K, 16K,
Custom Size available*2
^ optional Universal Cassette UC-A1 and UFR II printer driver are required
Paper Type Plain, Heavy, Recycled, Color, Transparency, Label, Envelope
Paper Weight Standard Cassette: 60 ~ 120g/m2
Multi-Purpose Tray: 60 ~ 199g/m2
Optional Paper Feeder PF-A1: 60 ~ 120g/m2
Paper Output
(Based on 64g/m2)
Face-Down: 250 sheets
Face-Up: 50 sheets
Connectivity and Software
Standard Interface USB 2.0 High Speed, USB 2.0 Host (2 ports), 10 / 100 Base-T / 1000 Base-T Ethernet
Expansion Interface SD Card Slot
Compatible Operating Systems*3 Windows XP (32 / 64-bit), Windows Vista (32 / 64-bit), Windows 7 (32 / 64-bit), Windows 8 (32 / 64-bit), Windows Server 2003 (32 / 64-bit), Windows Server 2008 (32 / 64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), Mac OS 10.6 ~ 10.8.x*4, Linux*4, Citrix
Security & Other Features
Security Function IPSec, IEEE802.1x, Secure Print (with optional SD Card)
Support MEAP function
Mobile Print Canon Mobile Printing
General Specification
Memory (RAM) 768MB
LCD Display 5-line LCD
Dimensions (W x D x H) 514 x 532 x 303mm
Weight Approx. 25.8kg (without cartridge)
Power Consumption Maximum: 1420W
During Operation: Approx. 670W (Average)
During Standby:
Approx. 38W (Average)
During Sleep 1:
Approx. 38W
During Sleep 2:
Approx. 12W
During Sleep 3: Approx. 1.1W
Energy Star TEC (Typical Electricity Consumption) 2.2kWh/week
Noise Level During Operation: Sound Power Level: 7.30B or less
Sound Pressure Level (Bystander's position): 56dB
During Standby: Sound Power Level: Inaudible
Sound Pressure Level: Inaudible
Operating environment Temperature: 10 ~ 30°C
Humidity: 20 ~ 80% RH (no condensation)
Power requirement AC 220 - 240V, 50 / 60Hz
Toner Cartridge*5 Cartridge 333: 10,000 pages (bundled: 10,000 pages)
Cartridge 333 H: 17,000 pages
Monthly Duty Cycle*6 Up to 100,000 pages
Recommended Monthly Print Volume 4,000 - 10,000 pages
Optional Accessories
Paper Feeder Paper Feeder PF-A1 (550-sheets)
Universal Cassette Universal Cassette UC-A1*7
Barcode ROM Barcode Printing Kit-F1
Secure Print Canon SD Card-B1 (8GB)
